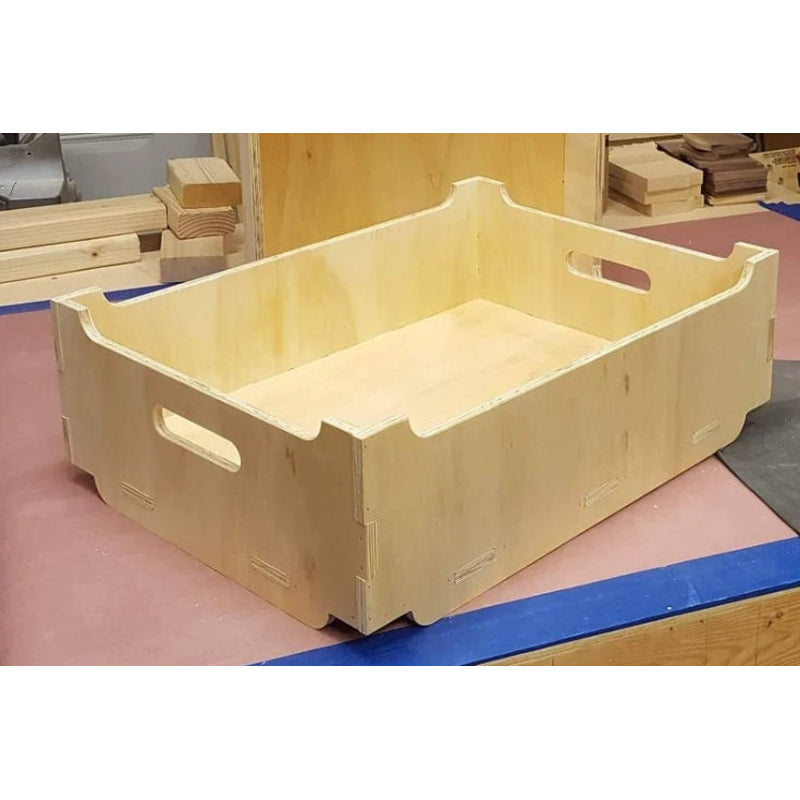

Digital design files for a stackable crate made from 1/2" Plywood (12.5mm).
This design has three models: Small, Medium, and Large Crate
Dimensions:
Small Crate:
OD: 11" x 6" x 5.2"
ID: 10" x 5" x 3.4"
1/2" Plywood (12.5mm)
Medium Crate:
OD: 18" x 11" x 9.84"
ID: 12" x 10" x 7.4"
1/2" Plywood (12.5mm)
Large Crate:
OD: 23.6" x 17.7" x 7.9"
ID: 22.6" x 16.73" x 6.4"
1/2" Plywood (12.5mm)
This design is sold in digital form with files for the following popular formats: .step, .obj, .dxf, .svg, and .f3d (Fusion 360).
This was originally designed in Fusion 360 and utilizes parameters for sizing so that it easy to change to different sizes. If you have a specific size you need, I would be happy to update and provide a specific file for you, just shoot me a message.
If you have any questions, let me know!
