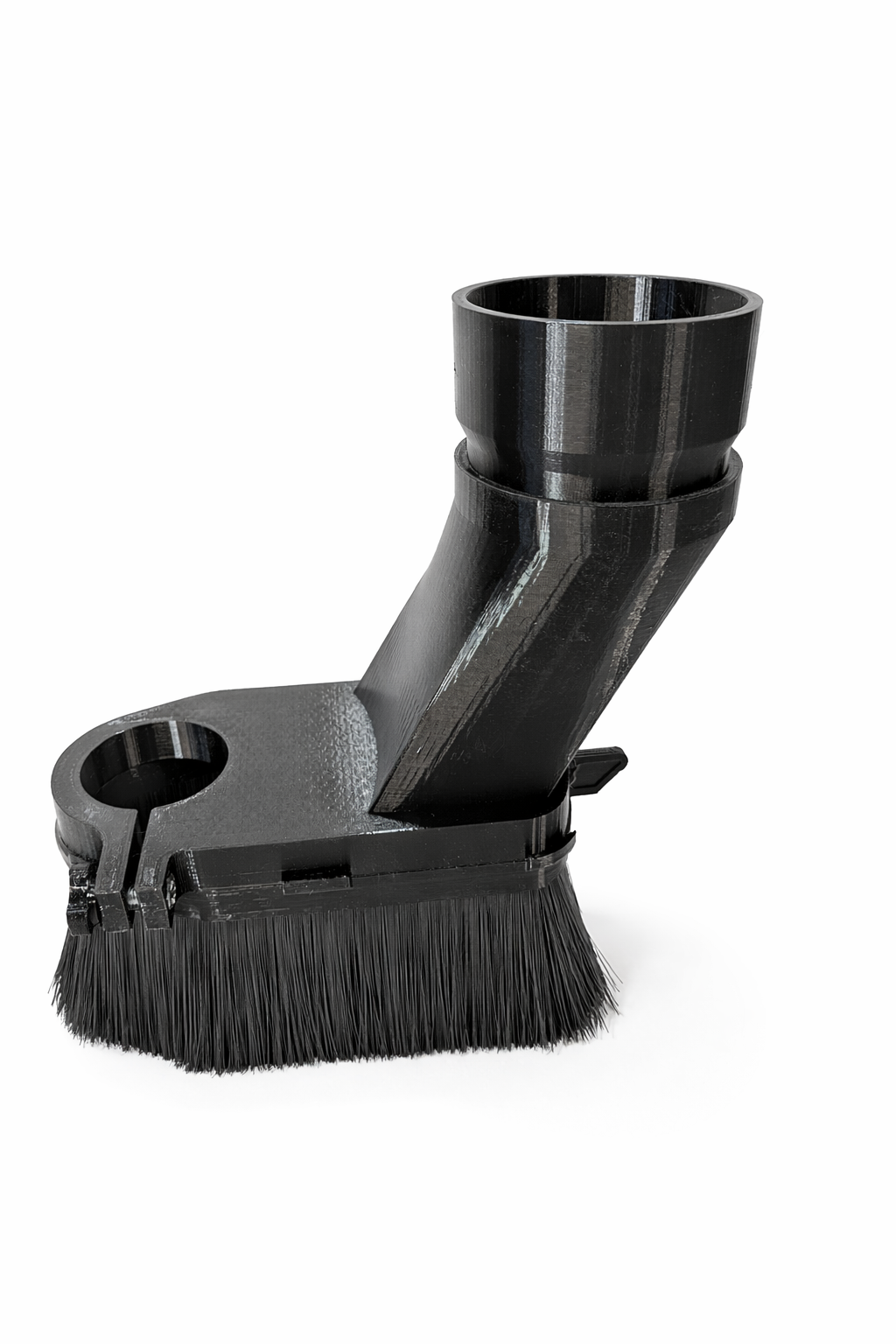

XCarve Pro Dust Boot v4 — Precision-Fit 59mm CNC Dust Shoe | Magnetic Quick-Release
XCarve Pro Dust Boot v4 — Precision-Fit 59mm CNC Dust Shoe | Magnetic Quick-Release
Couldn't load pickup availability

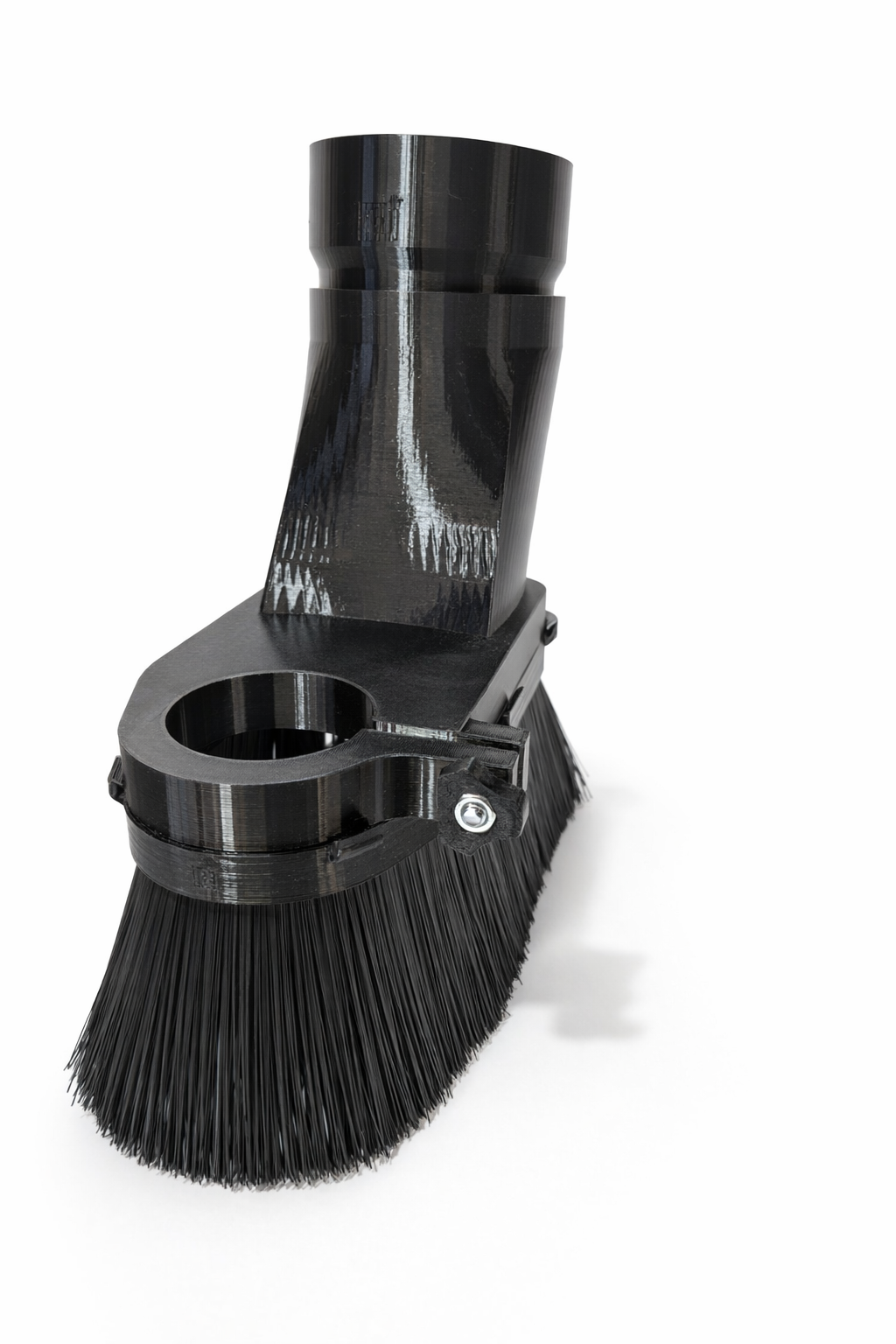

Most dust boots are made for 65mm spindles. Your XCarve Pro runs 59mm — and that gap costs you suction, stability, and clean cuts. This boot is built specifically for the XCarve Pro 2x2 and 4x4, with a true 59mm opening that fits like it was made for your machine. Because it was.
📦 What's Included — Yes, the Brush Comes With It

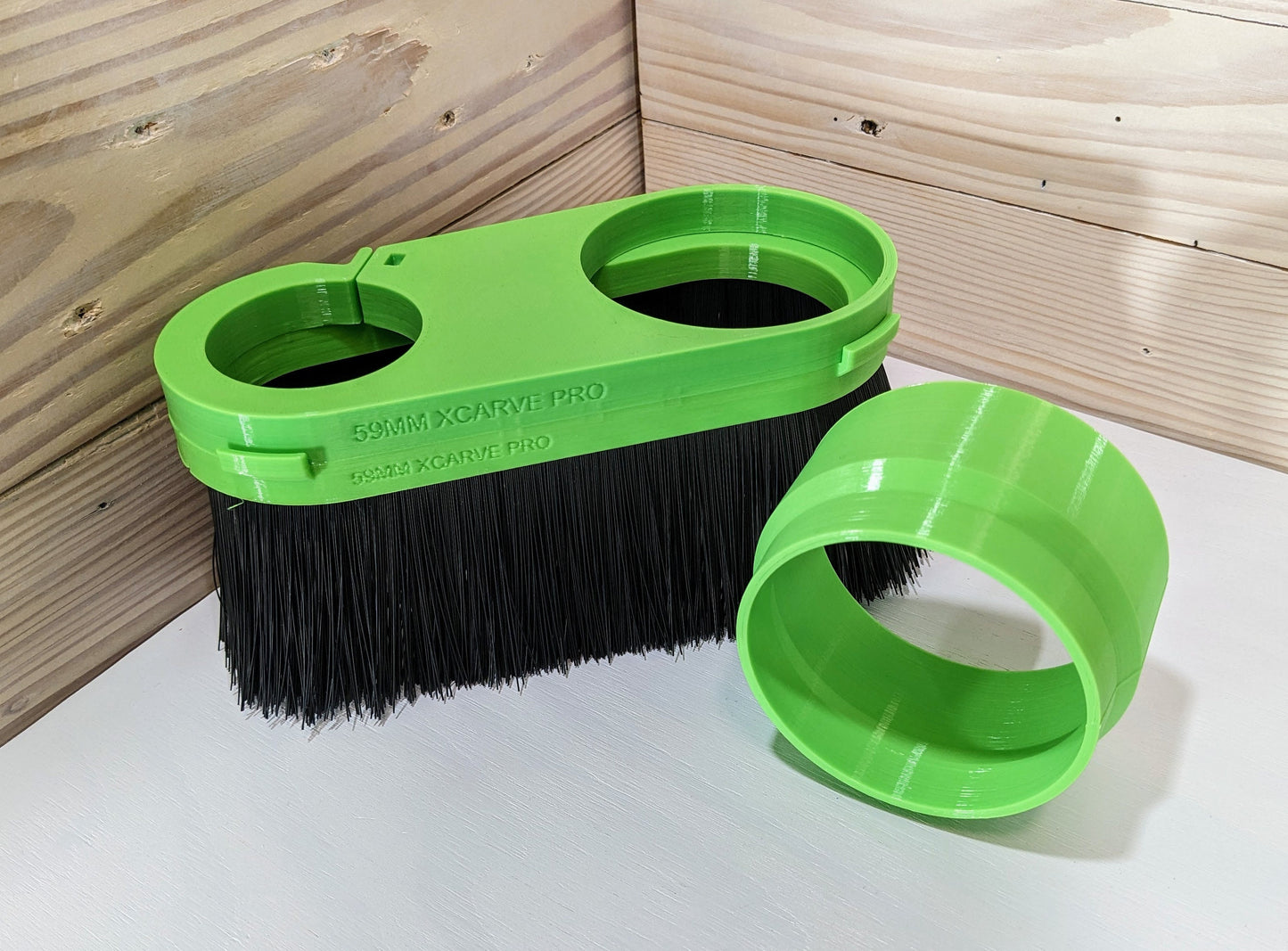

- ✅ Dust boot body — 59mm screw-clamp spindle mount, assembled and ready to install

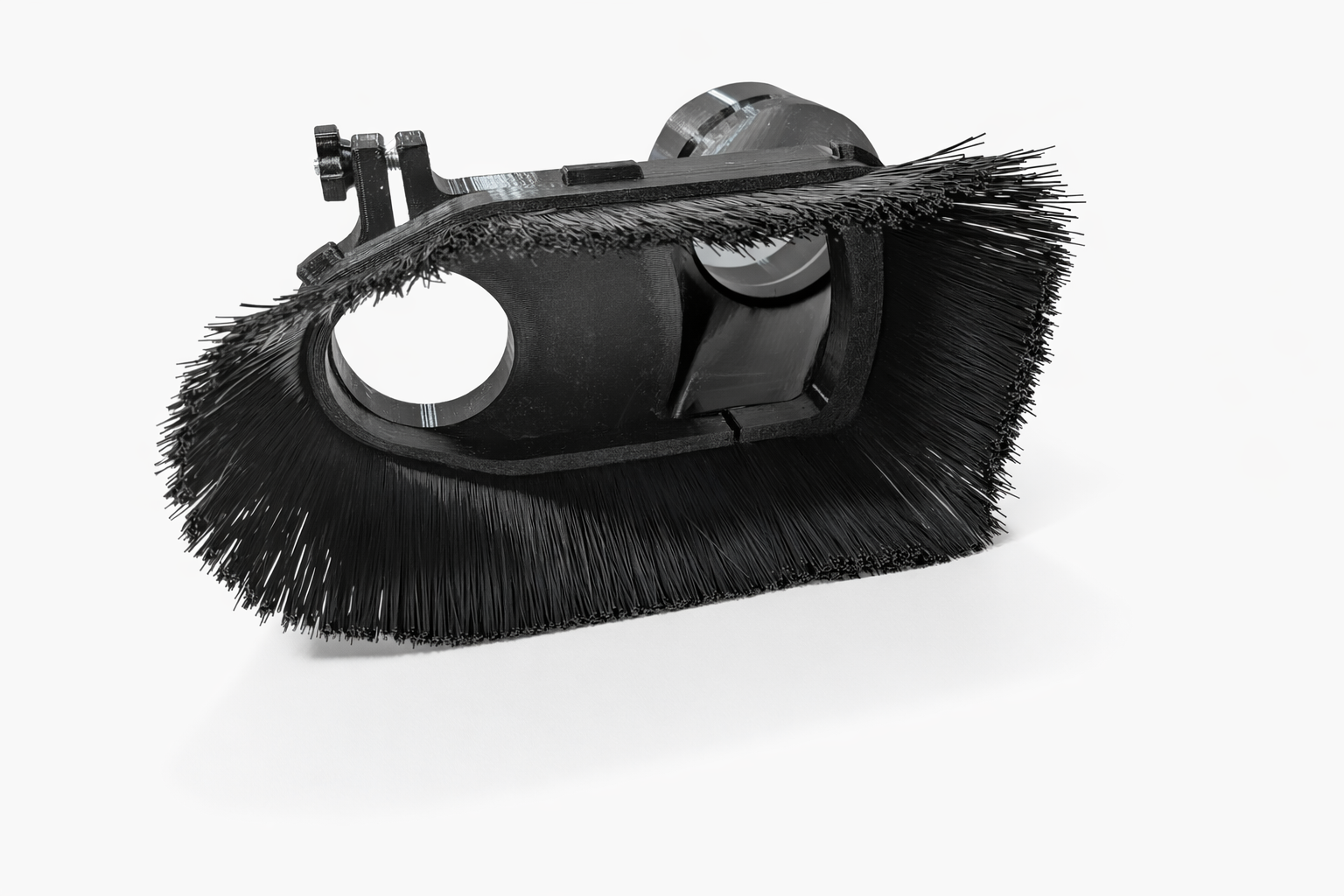

- ✅ Brush skirt, already fitted to the boot — 3" (76.2mm) USA-made nylon, full-ring style
- ✅ Hose adapter in your size — tell us your hose at checkout, no extra charge
You do not need to buy a brush separately. Every boot ships with a full brush installed and ready to cut. The brushes listed in our store are optional spares — or a split-style skirt if you'd rather run that.
Why XCarve Pro owners love it:
- 🎯 Precision 59mm fit — eliminates the wobble, air leaks, and suction loss you get with generic 65mm boots

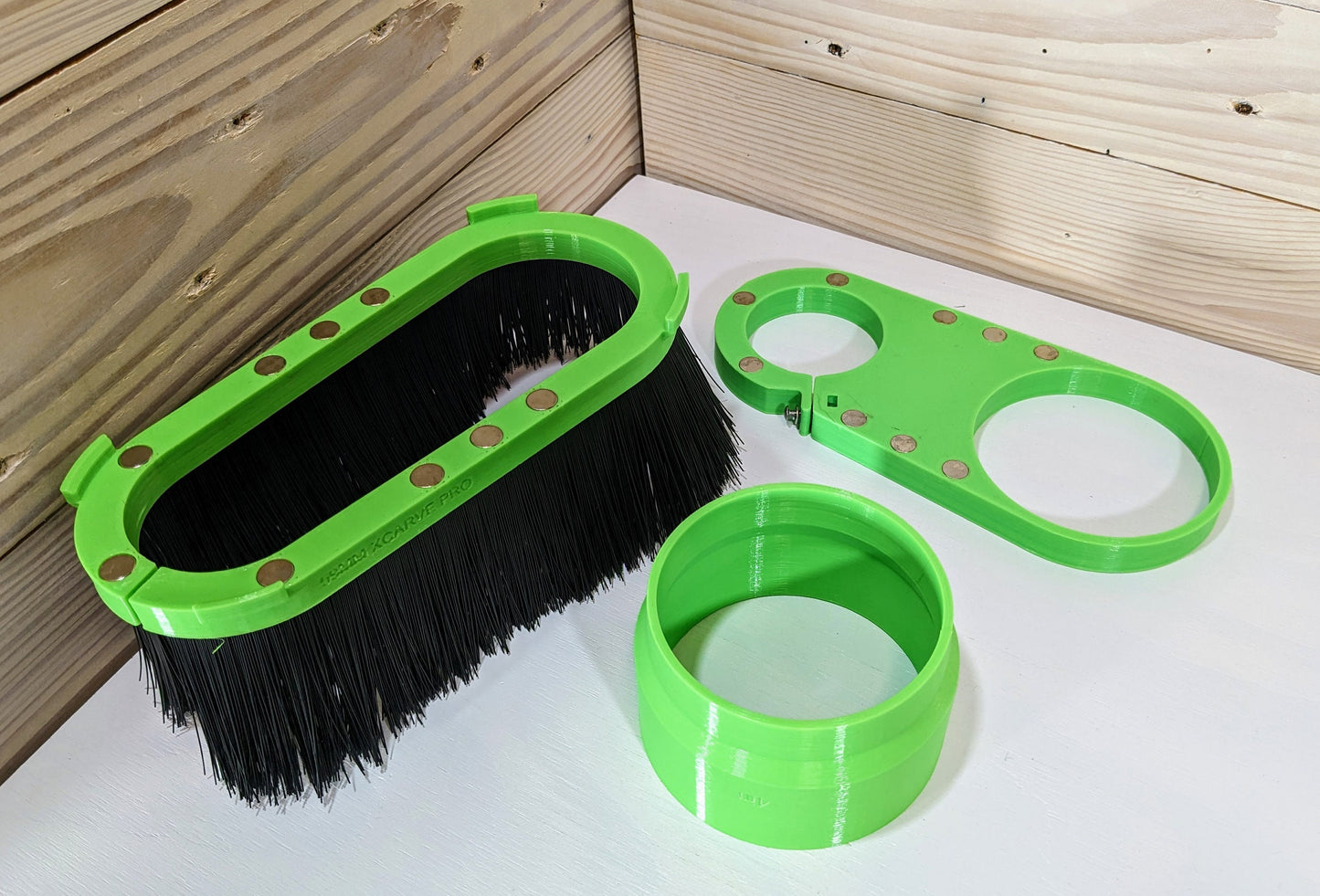

- 🧲 Magnetic quick-release — strong neodymium magnets hold the brush skirt firm during cuts; pops off in seconds for bit changes
- ✂️ Brush included — 3" USA-made nylon, trimmable to any length with scissors

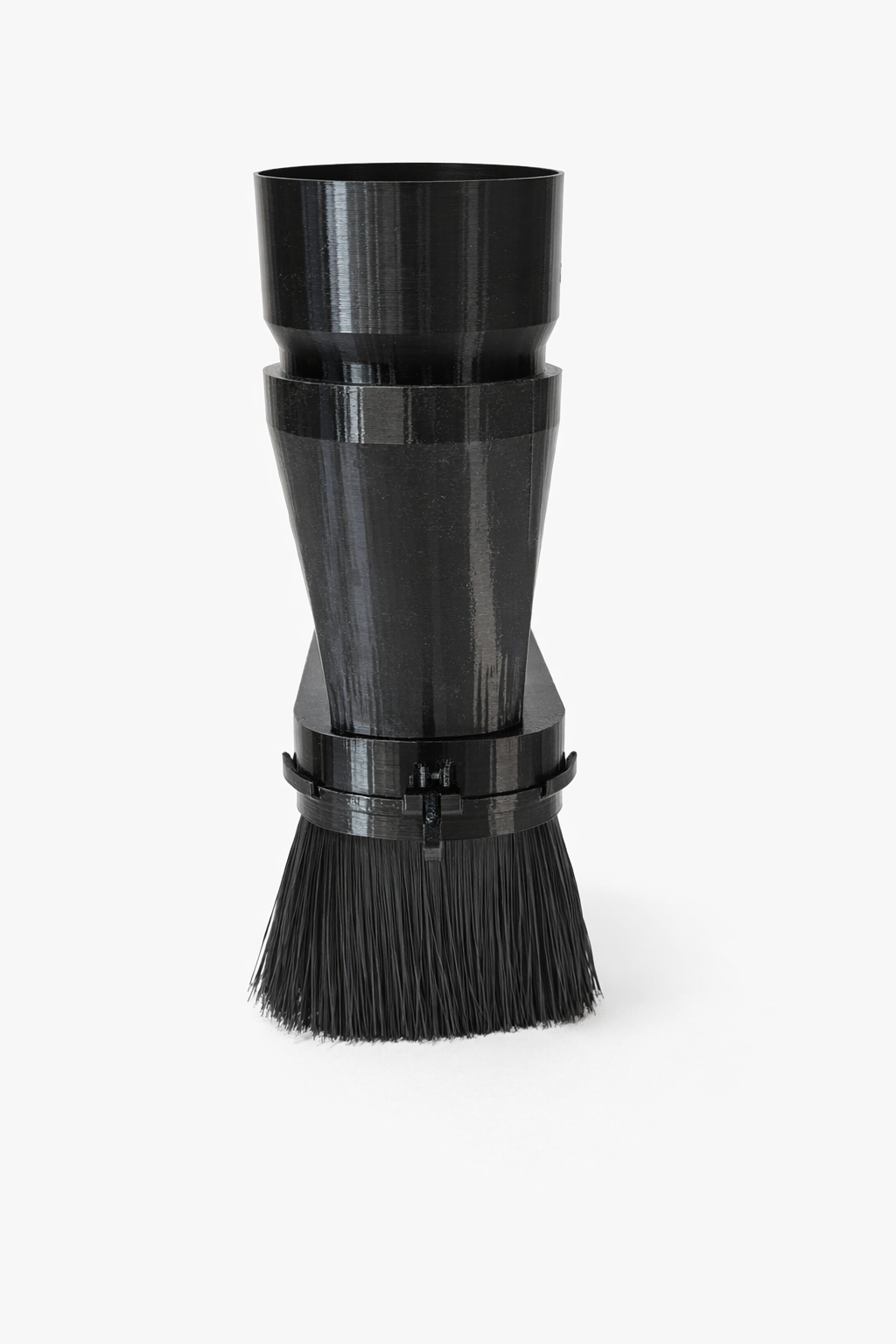

- 💨 4" dust hose port — optimized airflow path for maximum chip capture; adapters available for all hose sizes from 1.25" to 5"
- 🇺🇸 Small-batch, US-made — high-strength PETG polymer, nylon bristles, rare earth magnets
- 🔀 Split-skirt compatible — ships with the full brush; drop in a split skirt to flip open for tool changes without removing the boot
Specs:
Spindle fit: 59mm Inventables spindle
Compatible: XCarve Pro 2x2 and XCarve Pro 4x4

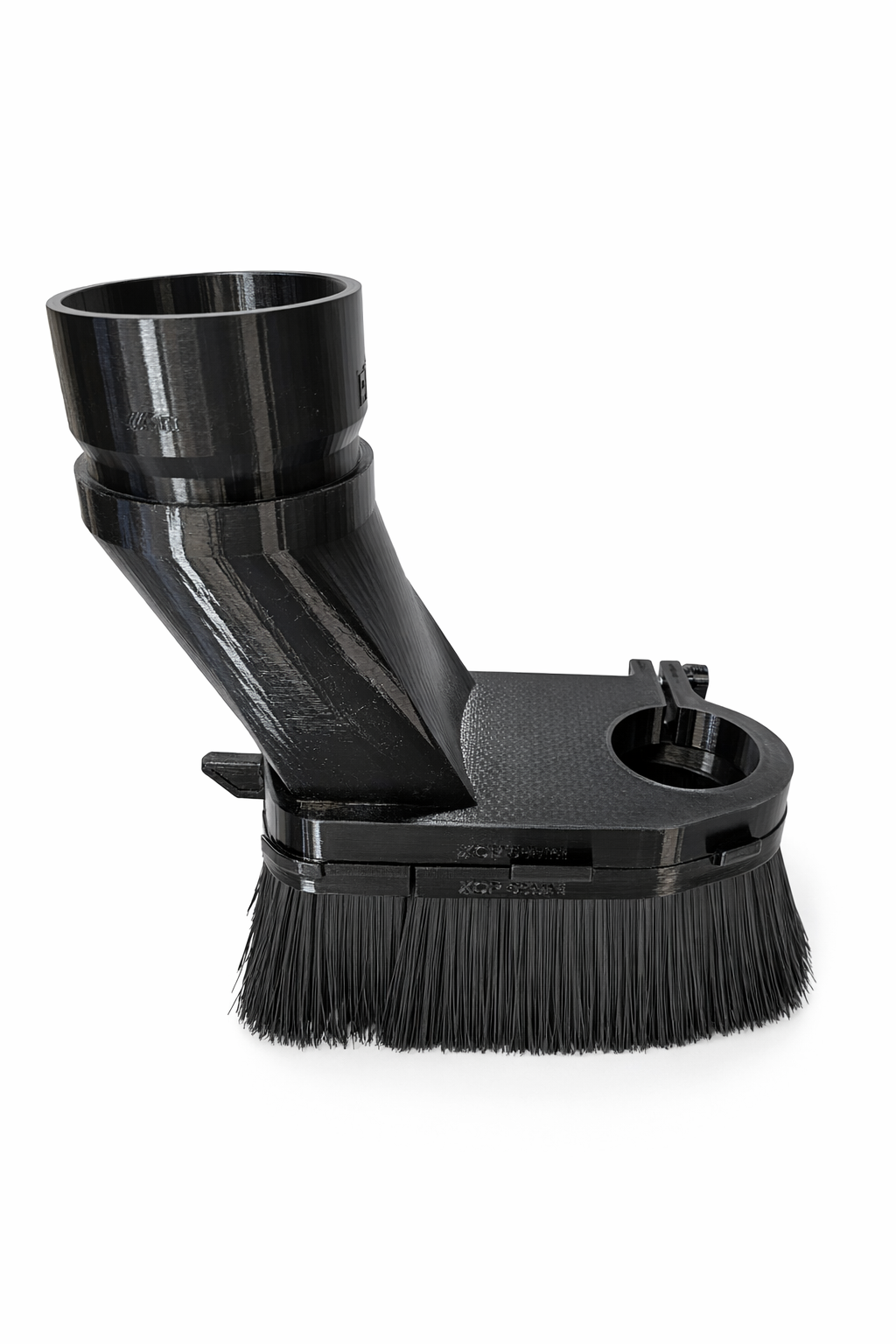

Hose port: 2.5" OD (adapters available)
Brush length: 3" (76.2mm)
Materials: PETG, Nylon, Neodymium magnets
Need a different hose size or spacer plates for longer end mills? Reach out — we're happy to configure it for your setup.
Designed by a CNC maker who got tired of generic boots that didn't fit right. Built to the spec your machine actually needs.
🔀 Full Brush vs. Split Brush
Both are the same 3" USA-made nylon bristle on the same magnetic mount. The difference is whether the ring of bristles is continuous or divided in two.
| Full Brush | Split Brush | |
|---|---|---|
| Shape | One continuous ring of bristles all the way around | The same ring, divided into two halves that part in the middle |
| Seal & suction | Best possible — no break anywhere in the bristles | Excellent — a thin seam where the halves meet |
| Changing a bit | Pull the whole skirt off the magnets (about two seconds), change the bit, snap it back | Part the two halves and reach straight in — the skirt never leaves the boot |
| Best for | Long production runs on one bit, maximum dust capture, sheet goods | Frequent tool changes, V-carving, multi-bit projects, lots of Z-zeroing |
| On this boot | ✅ Ships installed | Optional — add a split skirt any time |
🛒 Complete Your XCarve Pro Setup
Optional extras — your boot already arrives complete with brush and adapter. Most XCarve Pro owners add at least one of these over time:
| Product | Why You Need It | Price |
|---|---|---|
| Spare Brush — Full or Split | Optional spare (one already comes on your boot). Also how you switch to the split style. Drop-in, no tools. | $27.99 |
| Brush by the Foot | USA-made nylon bristle — trim to any length for your exact cut depth. Great for cutting thick stock. | from $10.00 |
| Brush Spacers — ½" & 1" | Cutting deep pockets or using long V-bits? Spacers lower the brush for a better seal on deeper passes. | $22.99 |
| Hose Adapters — 1.25" to 4" | Extra sizes beyond the one already included with your boot. Quick-connect. | from $7.00 |
| Dust Hose Support Kit | Keep your dust hose from dragging across the work area. Overhead EMT carriage follows the gantry. | $46.50 |
Frequently asked questions
Is the brush included with the dust boot?
Yes. Every P2P dust boot ships with a 3" (76.2mm) USA-made nylon brush skirt already installed on it — you do not buy the brush separately. The brushes listed in our store are optional spares and replacements for when yours wears down or gets trimmed too short.
What's the difference between a full brush and a split brush?
A full brush is one continuous ring of bristles — the best seal and the strongest suction, ideal for long runs on a single bit. A split brush is that same ring divided into two halves, so you can part it and reach the bit without pulling the skirt off the boot — handy if you change tools constantly. This boot ships with the full brush; a split skirt drops onto the same magnets any time.
Does this dust boot fit the XCarve Pro 2x2 and 4x4?
Yes — it's purpose-built for both. The true 59mm opening matches the Inventables 59mm spindle exactly, eliminating the air gaps and suction loss you get with generic 65mm boots.
What spindle diameter does it fit?
The 59mm Inventables spindle used on the XCarve Pro. It is not compatible with 65mm (Makita), 69mm, or 80mm spindles — we make separate boots for those. Unsure? Measure the outer diameter of the spindle body just above the collet.
How does the magnetic quick-release work?

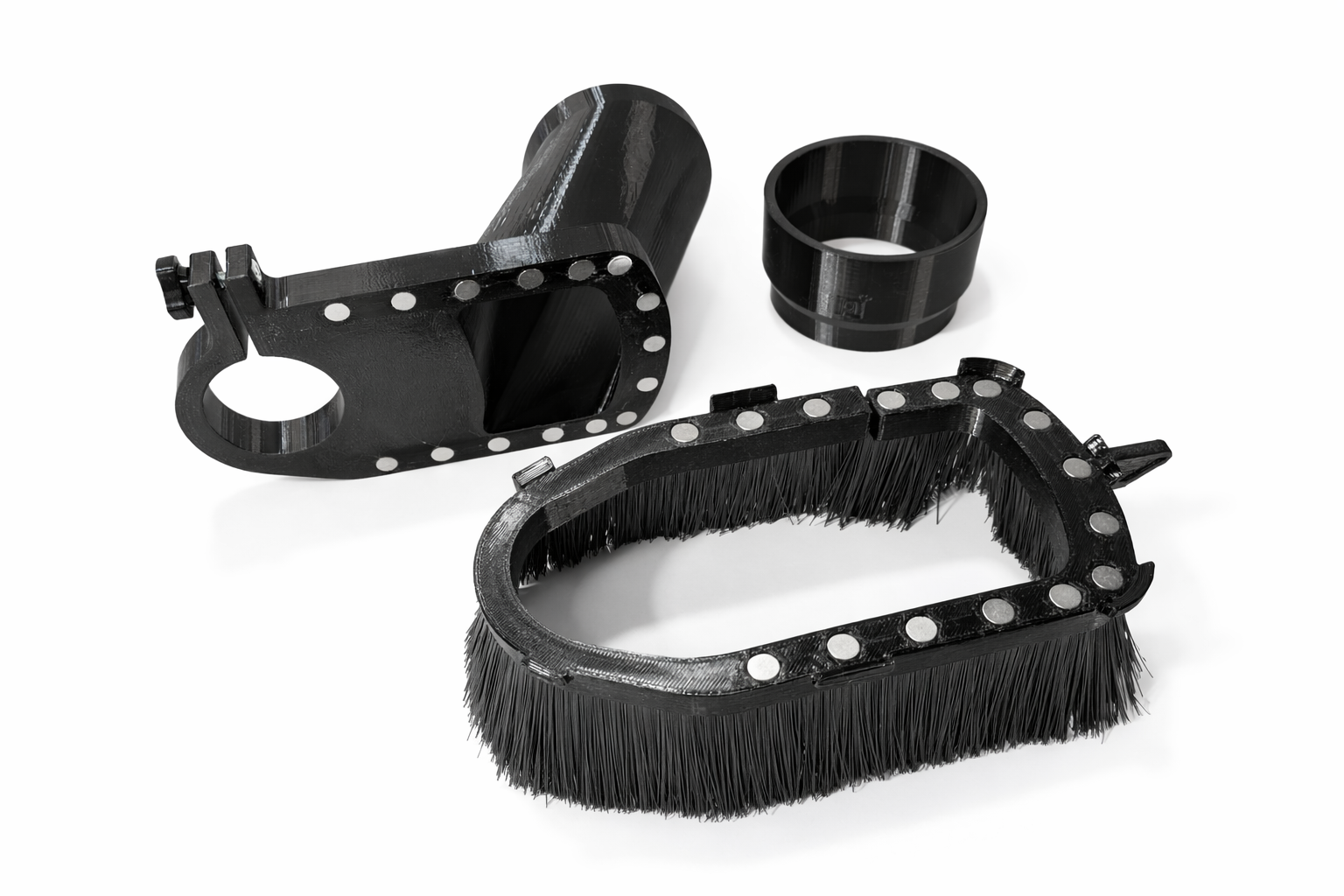

The brush skirt attaches via neodymium magnets in both halves. They hold the skirt firmly during cuts; to change a bit, pull the skirt straight down — it detaches in one motion with no tools. Press it back up until the magnets seat.
What hose size does it accept?
The hose port is 2.5" OD, and one adapter in your size is included at no extra cost — just tell us at checkout. We also sell quick-connect adapters separately for 1.25", 1.5", 2.5", and 4" hoses if you need a second size, so it works with standard shop vacs, dust deputies, and larger collectors.
Will it clear my end mills and V-bits?
The standard 3" (76.2mm) brush clears most 1/4" and 1/8" upcut spirals, V-bits, and surfacing bits. For longer tooling, add a 1/2" or 1" brush spacer to lower the skirt and keep a good seal.
How do I install it?

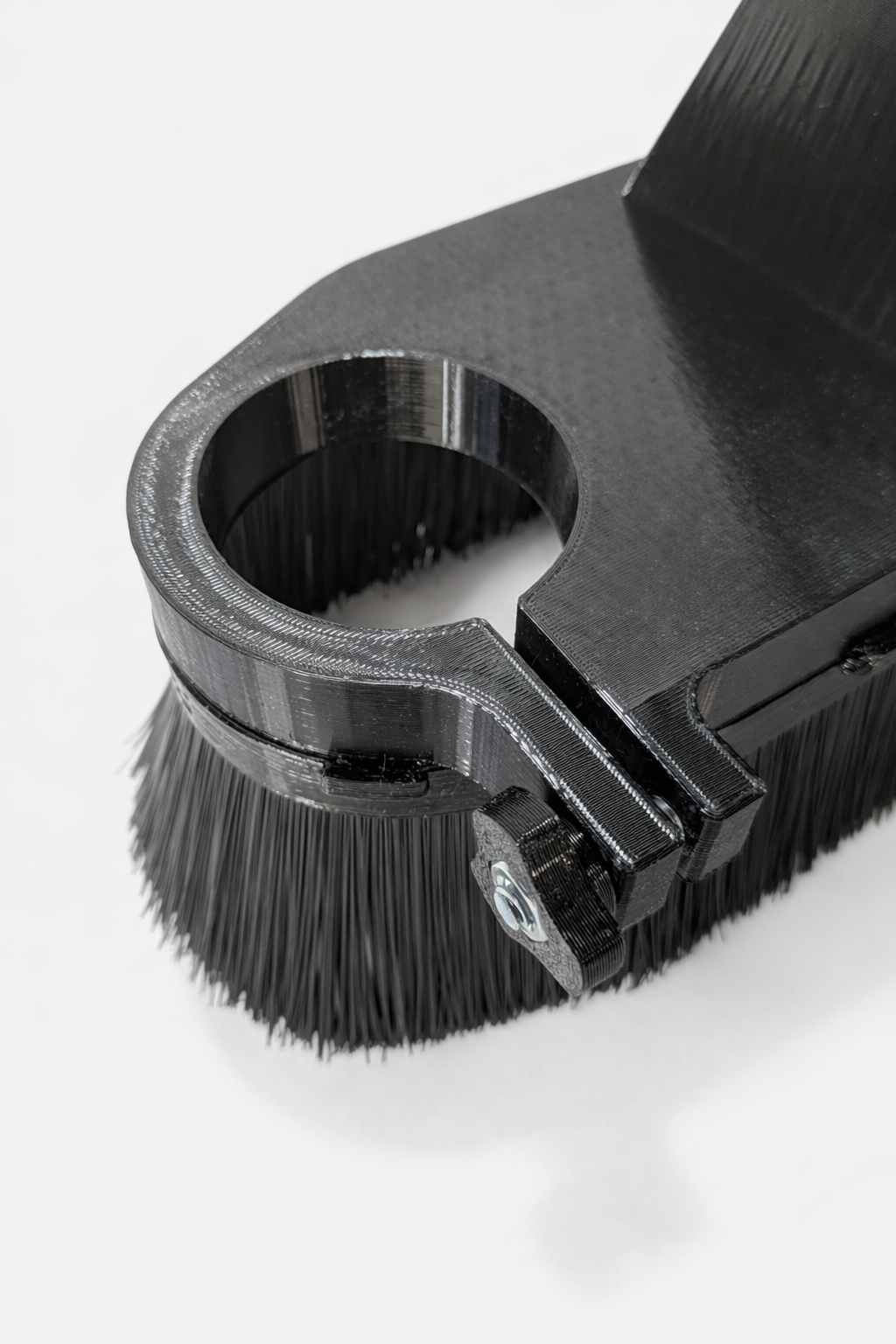

Clamp it around the spindle body with the integrated split-collar mount: loosen the two M4 screws, slide the boot onto the 59mm spindle at your preferred height, then snug the screws. No drilling or modification — typically under five minutes.
Can I replace the brush skirt when it wears out?
Yes. Replacement skirts are available separately in Full and Split configurations. The Split version installs without removing the boot. You never need to replace the whole boot — just the skirt.
