How to stop tear-out on a miter saw (the 5-minute fix)

The first time somebody hands you a piece of trim you just cut and points at the back edge, you learn something about miter saws. The face looked perfect. The back looked like a dog chewed it.

That's tear-out, and it is the single most common complaint I hear about miter saws. People buy a new blade. Then a nicer blade. Then they start blaming the saw. Almost always, the real culprit is sitting two inches under the blade, and it's the cheapest part on the whole machine: the kerf plate.

Here's the five-minute version, and then the details.

The five-minute fix, in one paragraph

Back the workpiece up so the wood fibers have something to push against. That's it. Either clamp a sacrificial fence board to your saw's fence and cut through it once, or replace the gapped factory kerf plate with a zero clearance insert that closes the slot around the blade. Both work by the same principle. The fence board takes five minutes and costs nothing. The insert takes about two minutes and stays in the saw permanently.

Now let's talk about why.

Why miter saws tear out in the first place

A saw tooth doesn't slice wood — it shears it. As the tooth exits the far side of your board, it's pushing the last few fibers away from the cut instead of severing them. If something is holding those fibers in place, they get cut clean. If there's nothing behind them, they bend, split, and lift.

On a miter saw you have two exit faces, which is why tear-out shows up in two places:

The underside of the board, where the blade drops through the kerf slot in the table. Look at the factory plate on almost any miter saw and you'll see a slot wide enough to swallow a quarter. It has to be that wide, because the same plate has to clear the blade at every bevel angle the saw can hit. That's a manufacturing decision, not a woodworking one.

The back face of the board, where the blade exits into the fence gap. Every miter saw has an opening in the fence so the blade can pass through at extreme miter angles. Same problem, different plane.

Understand that and every fix below makes obvious sense. This is the same idea I wrote up for table saws in what a zero clearance insert is and why every woodworker needs one — the physics don't change, just the machine.

Fix #1: A sacrificial fence board (free, five minutes)

If you want to test this idea before spending a dime, do this today.

Grab a straight piece of 1/2" or 3/4" plywood, about 4" tall and long enough to span your saw's fence. Clamp it — or bolt it, most fences have holes — flat against the fence. Set your saw to 90 degrees, run the blade down through it once, and you've just created a zero clearance fence.

One thing before you do it: check your saw's manual first. Most manufacturers cover auxiliary fences directly, and they'll tell you the maximum height you can add without fouling the blade guard or limiting your bevel travel, plus whether your fence has mounting holes meant for exactly this. Every saw is a little different, and the manual takes two minutes to skim.

Now every cut you make at 90 degrees has solid material backing up the rear face of your board. Crosscut a piece of oak plywood and compare it to one you cut yesterday. It's not subtle.

The catch: it's zero clearance for one angle only. The second you swing to 45 degrees, the blade cuts a new slot and the old one is just a gap again. If you cut a lot of angles, you'll be replacing the board regularly. That's fine — it's scrap plywood. Just know what you're signing up for.

Fix #2: A zero clearance insert (the permanent one)

The kerf plate is the fix that stays fixed.

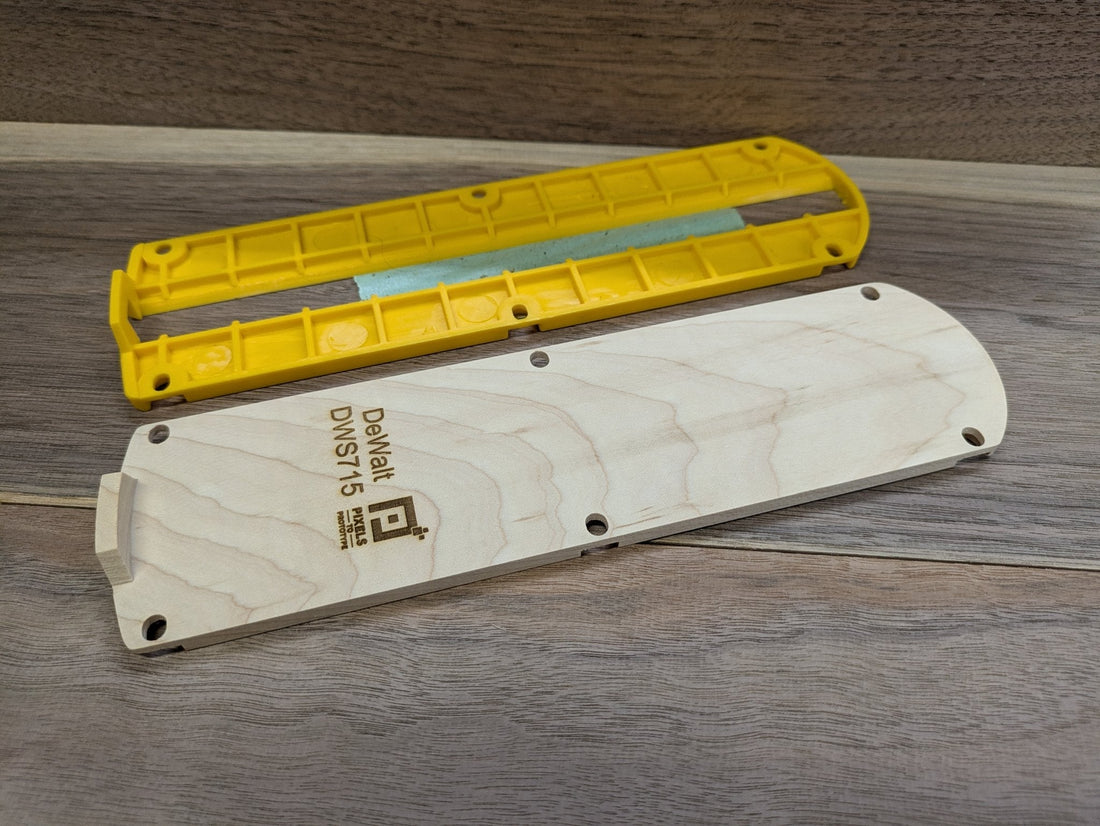

A zero clearance insert replaces the factory throat plate with one that has no gap — or, more precisely, one where your blade cuts its own slot on first use, so the opening matches your blade's exact kerf instead of a generic worst-case width. Fibers on the underside of the cut have material supporting them right up to the tooth. The blowout on the bottom edge mostly disappears.

I make these out of hardwood, in small batches, here in Indiana, and I'll tell you honestly why hardwood rather than the plastic the factory used:

It stays flat. Thin plastic plates flex when you lean on a workpiece, and a plate that flexes lets your stock move at exactly the wrong moment. Dense hardwood — walnut, cherry, ash, maple, oak — holds its shape.

It stays put. A plate that sits proud of the table catches the leading edge of your board. One that sits low lets thin stock dip. Wood machines to a consistent thickness and stays there.

It's a consumable you can live with. When the kerf finally widens out from bevel cuts and blade swaps, you replace it for the price of lunch instead of hunting a discontinued OEM part.

If you've got a DeWalt, we make inserts for most of the popular ones: the DW715 hardwood zero clearance insert (which also covers the DW703, DW704, DW705, DW706 and DW716), the DWS779 insert in Standard, Type 20 and Type 22, the DWS780 insert, the DWS715 insert, and the DCS781 cordless insert.

Running something else? There's a Makita LS1019 zero clearance insert, and for the Lowe's crowd, inserts for the Kobalt SM2516LW, SM2518LW, and SM3017LW. The whole lineup, table saws included, lives in the zero clearance insert collection.

And if you own a CNC or a laser, cut your own. I sell the DW715 insert design files and the DWS779 Type 20 design files for a few bucks in DXF, SKP, STEP and F3D. The material is scrap. The part that eats an evening is modeling the plate, and that's the part you're buying.

Fix #3: The three tweaks that make it stick

The insert and fence board do most of the work. These finish the job.

Let the blade get up to speed, and go down slow

Most tear-out I see from experienced folks comes from chopping fast. Start the saw, let it reach full RPM, bring the head down at a steady, unhurried pace, and — this is the part people skip — let the blade stop before you raise it. Lifting a coasting blade back up through the cut drags teeth backward across your finished edge.

Use the right blade, and keep it clean

For crosscuts and trim, tooth count is what leaves you a clean edge. I run 80+ tooth blades on the miter saw for anything that shows — the general-purpose blade that came with your saw is built for speed through framing lumber, not for a finished edge on oak trim. Check your saw's manual for the maximum blade diameter and arbor size before you buy, since those vary by model.

And before you replace a blade, clean it. Pitch buildup makes a good blade cut like a dull one. A cheap resin remover and a nylon brush have saved more blades in my shop than I care to admit.

Score the cut line on the nasty stuff

For melamine, prefinished plywood, and anything with a fragile face: run a shallow pass first — drop the blade just barely into the surface, lift, then make the full cut. You're pre-severing the top fibers. It takes an extra three seconds and it's the difference between a clean edge and a fuzzy one on the material that's least forgiving.

Painter's tape over the cut line works too, on a smaller scale. It's not magic, but it helps on veneer.

What I'd actually tell you over the workbench

If you cut framing lumber and deck boards, honestly? Don't overthink it. Keep the stock plate, buy a decent blade, get on with your day.

If you cut trim, cabinet parts, plywood, or anything with a face somebody's going to look at — put a zero clearance insert in the saw and clamp a sacrificial fence to it. Twenty-some dollars and an afternoon's attention buys you back every one of those cuts where you flipped the board over, saw the blowout, and had to go cut another one.

That's the whole trick. Support the fibers. Everything else is details.

FAQ

Why does my miter saw tear out even with a brand new blade?

Because a new blade doesn't change what's behind the wood. If the factory kerf plate has a wide slot and your fence has an opening, the fibers on the exit faces still have nothing supporting them. A sharp blade helps — a dull one absolutely makes tear-out worse — but blade sharpness and fiber support are two separate problems. Fix the support and a mid-range blade will outperform a premium blade over a gapped plate.

Will a zero clearance insert work for bevel and miter cuts?

The insert's slot is cut by your blade at one setting, usually 90 degrees. Swing to a bevel and the blade cuts a wider path, which permanently opens up the slot. Most people accept that — the insert still helps at 90, and the kerf widens gradually. If you do a lot of bevel work, keep the factory plate and swap it in, or plan on treating inserts as a consumable. This is true of every zero clearance insert, mine or homemade.

Do I need to cut the kerf slot myself?

Yes, and that's the point. Lowering your own blade through the insert means the slot matches your blade's kerf width exactly, not an average. Install it, set the saw to 90 degrees, run the blade up to full speed, and lower it slowly through the fresh insert.

Is a hardwood insert better than making one from plywood or MDF?

Plywood works and I won't pretend otherwise — plenty of people cut their own from Baltic birch and are happy. MDF is the one I'd avoid, because it swells if your shop picks up humidity, and a swollen plate no longer sits flush. Hardwood's advantage is that it stays flat, machines to a consistent thickness, and holds a crisp edge at the kerf longer than softer material.

How do I know when to replace my insert?

When you start seeing tear-out again. The kerf slot widens over time from blade swaps, bevel cuts, and normal wear, and once the gap is back you've lost the benefit. Treat inserts like sandpaper or blades — a consumable, not a permanent part.
