What is a CNC dust boot — and do you really need one?

If you've spent any time running a hobby CNC router, you already know the mess. A few minutes into a job and your spoilboard is buried under chips, your shop is coated in fine dust, and you're squinting through a haze trying to see whether the cut is going sideways. It doesn't have to be this way.

A CNC dust boot is one of the most practical upgrades you can make to a hobby CNC machine — and yet plenty of new CNC owners skip it, either because they don't know what it is or they figure they'll deal with the dust later. This guide covers exactly what a dust boot does, whether you actually need one, and what to look for when you buy.

What is a CNC dust boot?

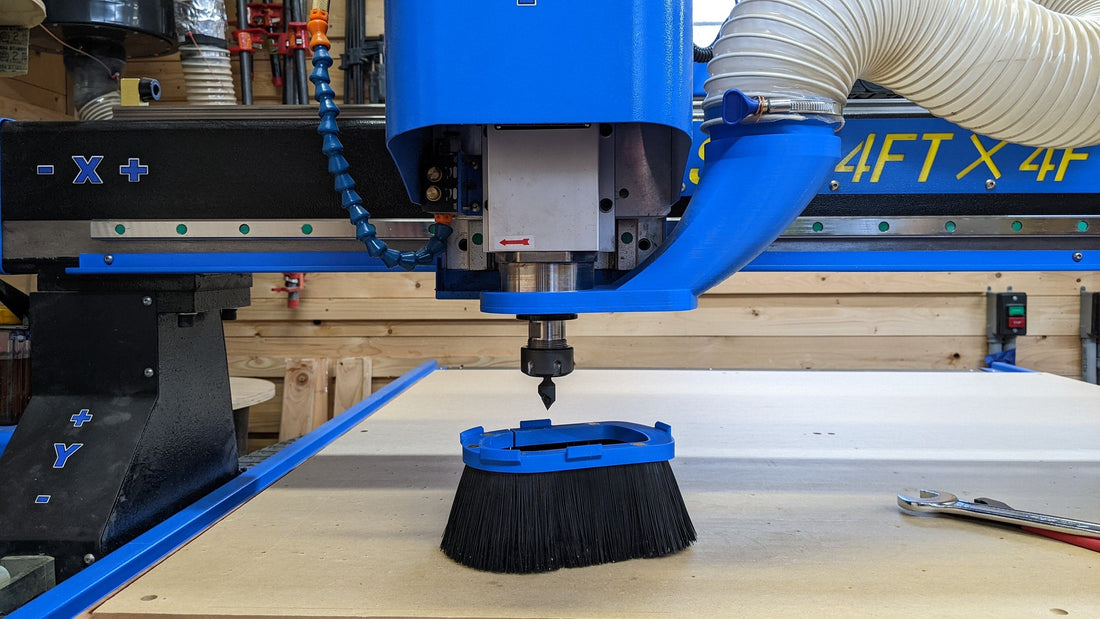

A CNC dust boot (also called a dust shoe) is an enclosure that mounts around your router or spindle and connects to a shop vacuum or dust collector via a flexible hose. As the router bit cuts, the dust boot captures chips and fine dust at the source — right where the bit meets the material — before it can escape into your shop.

Most dust boots have three main components:

• A body that clamps or mounts to the router or spindle and holds everything together
• A brush skirt that creates a seal around the cutting area, containing the dust without obstructing the toolpath
• A hose port that connects to your vacuum or dust collector

The brush skirt is intentionally flexible so it can ride over clamps, tabs, and surface variations without catching or lifting. When everything is dialed in, the suction draws chips directly into the hose and your cut stays visible and clean.

Why does dust collection matter on a CNC?

CNC routers move fast and remove a lot of material quickly. Unlike a hand router or table saw where you're making one pass at a time, a CNC might be running a 30-minute job unattended — and in that time it can generate a shocking amount of wood dust and chips.

Health. Fine wood dust — especially from hardwoods, MDF, and plywood — is a real respiratory hazard. The particles generated by a CNC bit are small enough to stay airborne for hours. A dust boot dramatically reduces how much of that ends up in the air you're breathing.

Visibility and accuracy. Chips piling up around the bit obscure your view and can interfere with the cut itself. Some materials — particularly MDF and soft woods — throw chips back into already-cut areas and can cause the bit to re-cut loose material, affecting surface finish.

Machine longevity. Fine dust infiltrates bearings, linear rails, and lead screws. Over time it acts like a grinding paste, wearing down the moving parts of your machine. Good dust collection at the source is one of the best things you can do for the long-term health of your CNC.

Fire risk. Fine dust accumulation around a running spindle and motor is a legitimate fire hazard, particularly with resinous woods. Clearing chips continuously reduces this risk.

Do you really need a CNC dust boot?

Short answer: yes — if you're cutting wood, MDF, plywood, or plastics on a hobby CNC, a dust boot is worth every penny.

The exception might be if you're exclusively doing light engraving or scoring work that produces minimal material removal. But for any real cutting — profiles, pockets, v-carving in hardwood — a dust boot will immediately improve your shop air quality, your cut quality, and your machine's lifespan.

Some CNC owners try to get by with a shop vac hose held near the cut, but this approach is inconsistent and requires you to babysit the machine. A properly fitted dust boot handles collection automatically and lets you step away from the machine without coming back to a snow globe.

What makes a good CNC dust boot?

Magnetic quick-release

Tool changes are one of the most common interruptions in a CNC job. A dust boot that requires loosening screws or dismounting hardware to swap a bit will make you hate it within a week. The best boots use magnets to hold the brush skirt — you pull it off, swap your bit, snap it back on, and get on with the job in under 30 seconds. All of our P2P dust boots are built with magnetic quick-release for exactly this reason.

Spindle size fit

Dust boots mount around your router or spindle, so the fit has to be right. Common spindle diameters for hobby CNC machines include 59mm (XCarve Pro), 65mm (Makita RT0701C and most generic spindles), 70mm (DeWalt DWP611), 80mm (Onefinity Elite), and 40–90mm for many compact and aftermarket spindles. Always confirm your spindle diameter before ordering.

Full vs. split brush skirt

A full brush skirt forms a complete circle and provides the best suction containment. A split skirt has a gap that allows the dust boot to be slipped on and off without fully removing it from the machine — convenient if your router is boxed in or hard to access. We offer both styles on our P2P boots.

Hose compatibility

Most hobby CNC dust boots connect to a standard shop vac hose (typically 1.25" to 2.5") or a 4" dust collection hose. Our P2P Hose Adapters cover 1.25" all the way up to 4" and fit all P2P boots.

Which CNC dust boot should you get?

Onefinity Elite

The Onefinity Elite runs an 80mm spindle that most universal dust boots don't fit properly. Our Onefinity Elite CNC Dust Boot is purpose-built for 80mm, with magnetic quick-release and both full and split skirt options.

XCarve Pro

The XCarve Pro uses a 59mm spindle, which is narrower than most universal boots accommodate. Our XCarve Pro Dust Boot is precision-fit to 59mm with magnetic quick-release and a solid 4" hose connection.

Shapeoko, Workbee, Lead CNC, and most other machines

Our P2P CNC Dust Boot v3 covers spindle sizes from 59mm to 100mm with 12 size variants — magnetic, tool-change ready, and compatible with the widest range of hobby CNC machines on the market.

Machines with compact or unusual spindles (40mm–90mm)

The Petesquared CNC Dust Boot is a vortex-design boot handling 40mm to 90mm spindles, connecting to a 4" dust collection hose. It's one of the most refined designs in the maker community — fully built and ready to run.

Maintaining your dust boot

Check the brush regularly — the nylon brush skirt wears down over time, especially with abrasive materials. Replacement brushes are available in full and split styles, and we also sell brush strip by the foot if you prefer to cut your own. For deep tooling, our P2P Brush Spacers in 1/2" and 1" give you the extra height you need. And use a CNC Dust Hose Support Kit to route the hose overhead and keep it out of the gantry's path.

The bottom line

A CNC dust boot isn't a luxury accessory — it's a core part of a functional CNC setup. It protects your health, extends the life of your machine, improves cut quality, and makes the whole experience of running a CNC significantly more pleasant. If you're still cutting without one, this is the upgrade to make first.

Browse our full lineup of CNC dust boots at Pixels to Prototype — every boot we make is designed for real-world shop use, built in the USA, and backed by people who actually run CNC machines.

Have questions about which dust boot fits your machine? Reach out at pix2proto@gmail.com and we'll help you find the right fit.
