Phantom CNC Dust Boot — 85mm Spindle Clamp | Fits SCV44, Cosmic & Shadow | HQD GDF60-18Z-6.0
Phantom CNC Dust Boot — 85mm Spindle Clamp | Fits SCV44, Cosmic & Shadow | HQD GDF60-18Z-6.0
Couldn't load pickup availability

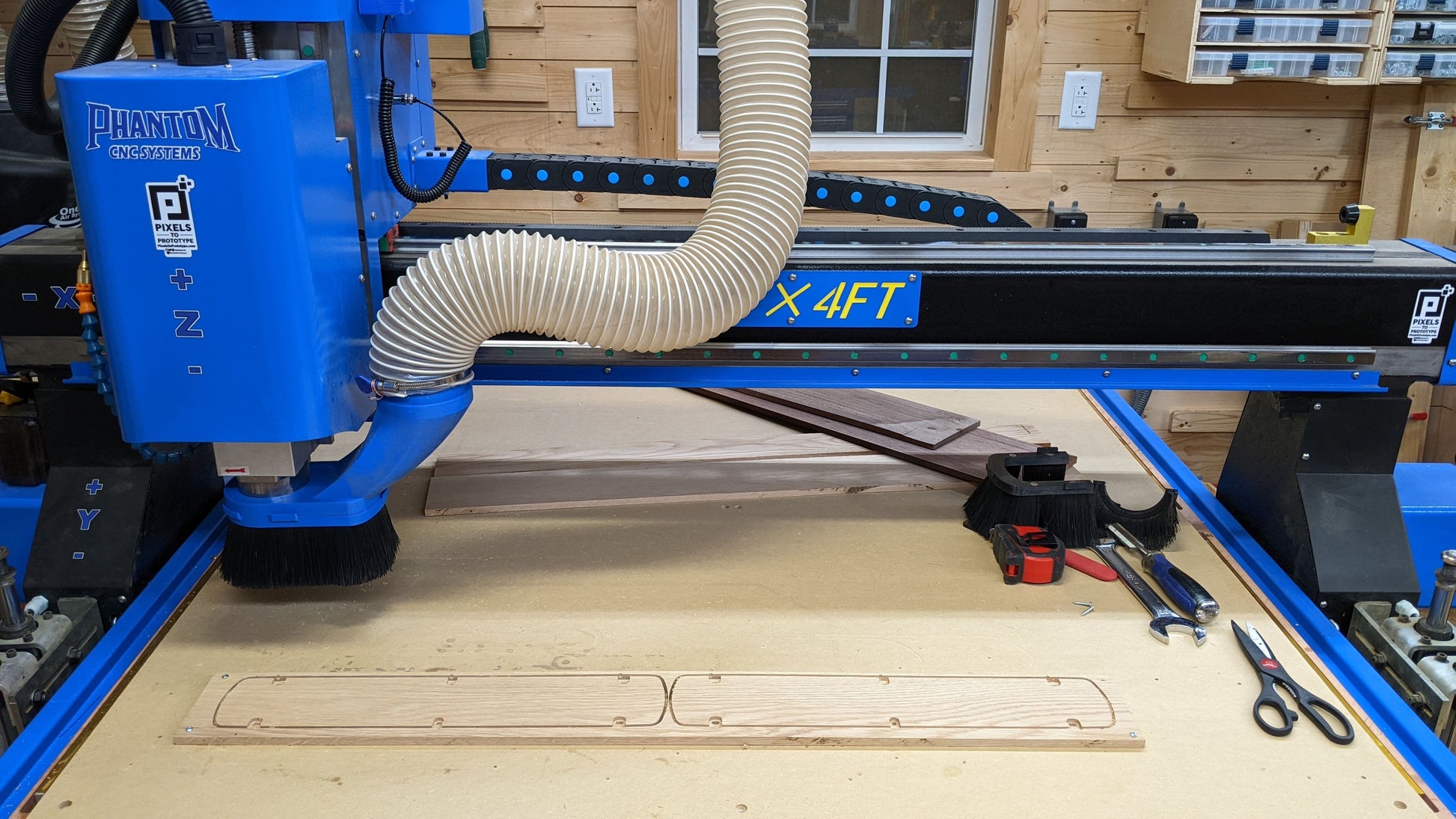

Your Phantom deserves dust collection built to the same standard as the machine itself. This boot was designed specifically for Phantom CNC SCV44, Cosmic, and Shadow machines running 85mm spindles — including the HQD GDF60-18Z-6.0 — and it even matches Phantom blue.
📦 What's Included — Yes, the Brush Comes With It
- ✅ Dust boot body — 85mm spindle clamp, assembled and ready to install
- ✅ Brush skirt, already fitted to the boot — 3" USA-made nylon, full-ring style
- ✅ Hose adapter in your size — tell us your hose at checkout, no extra charge
You do not need to buy a brush separately. Every boot ships with a brush installed and ready to cut. The brushes listed in our store are optional spares — or a split-style skirt if you'd rather run that.

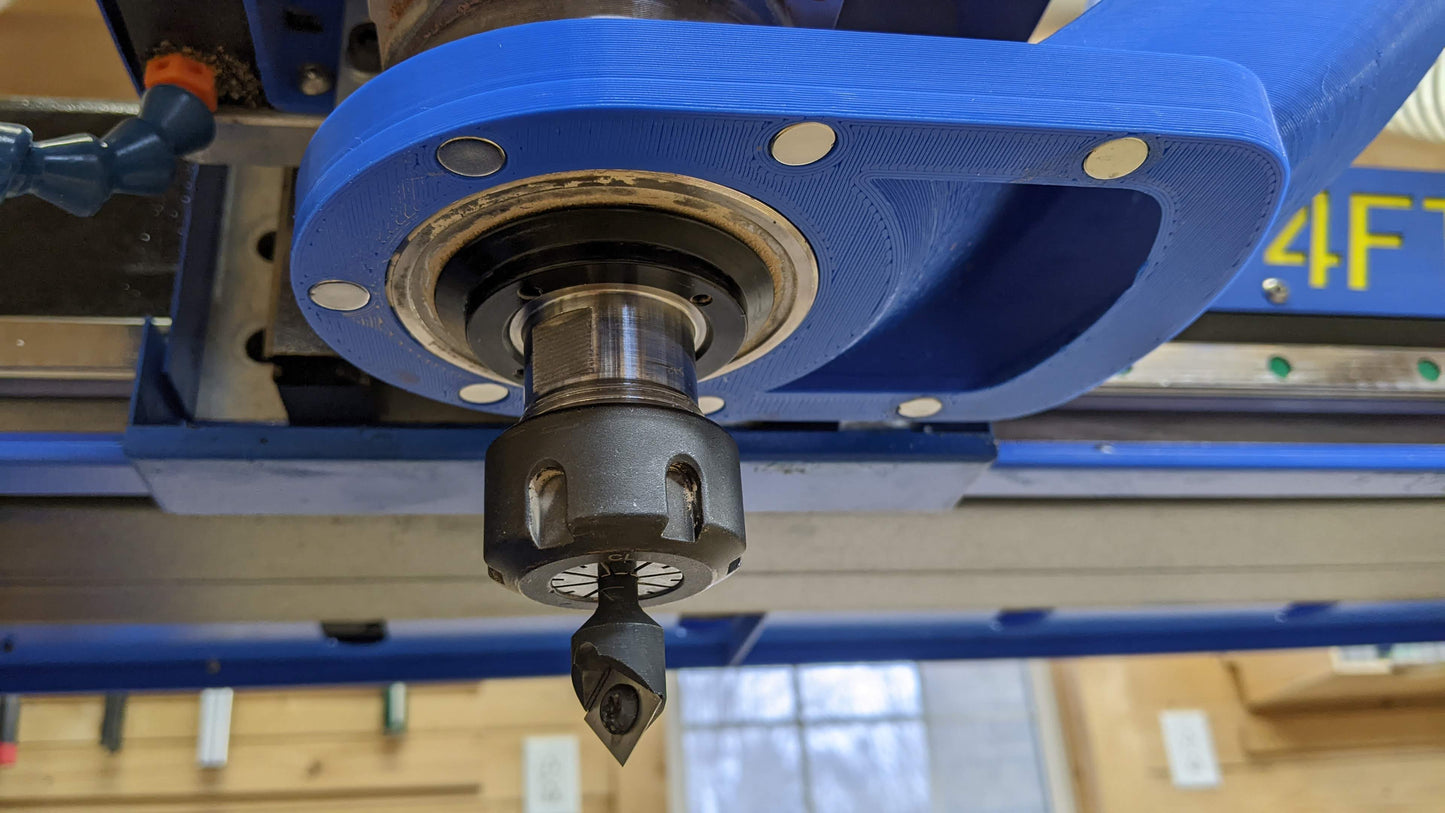

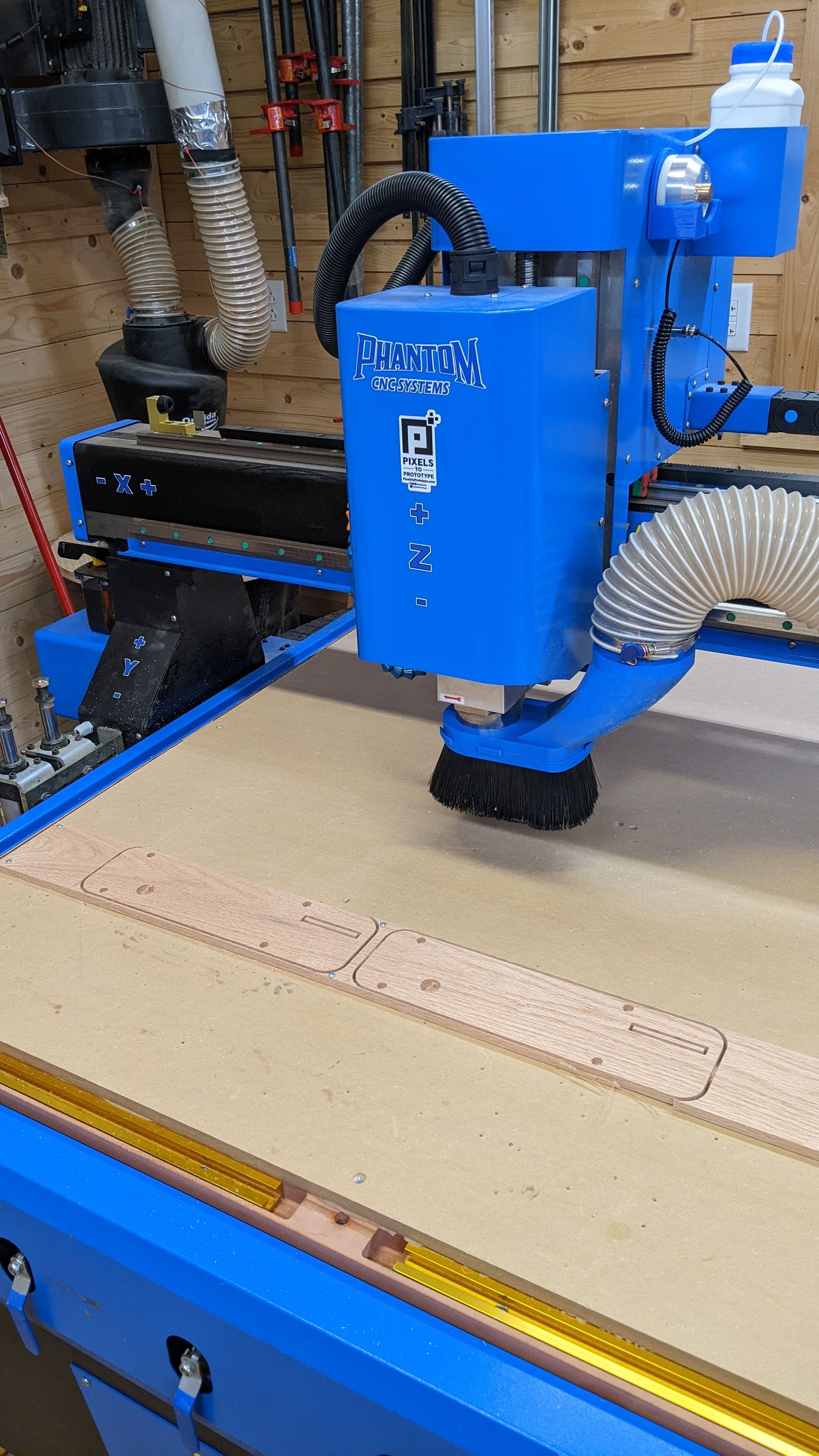

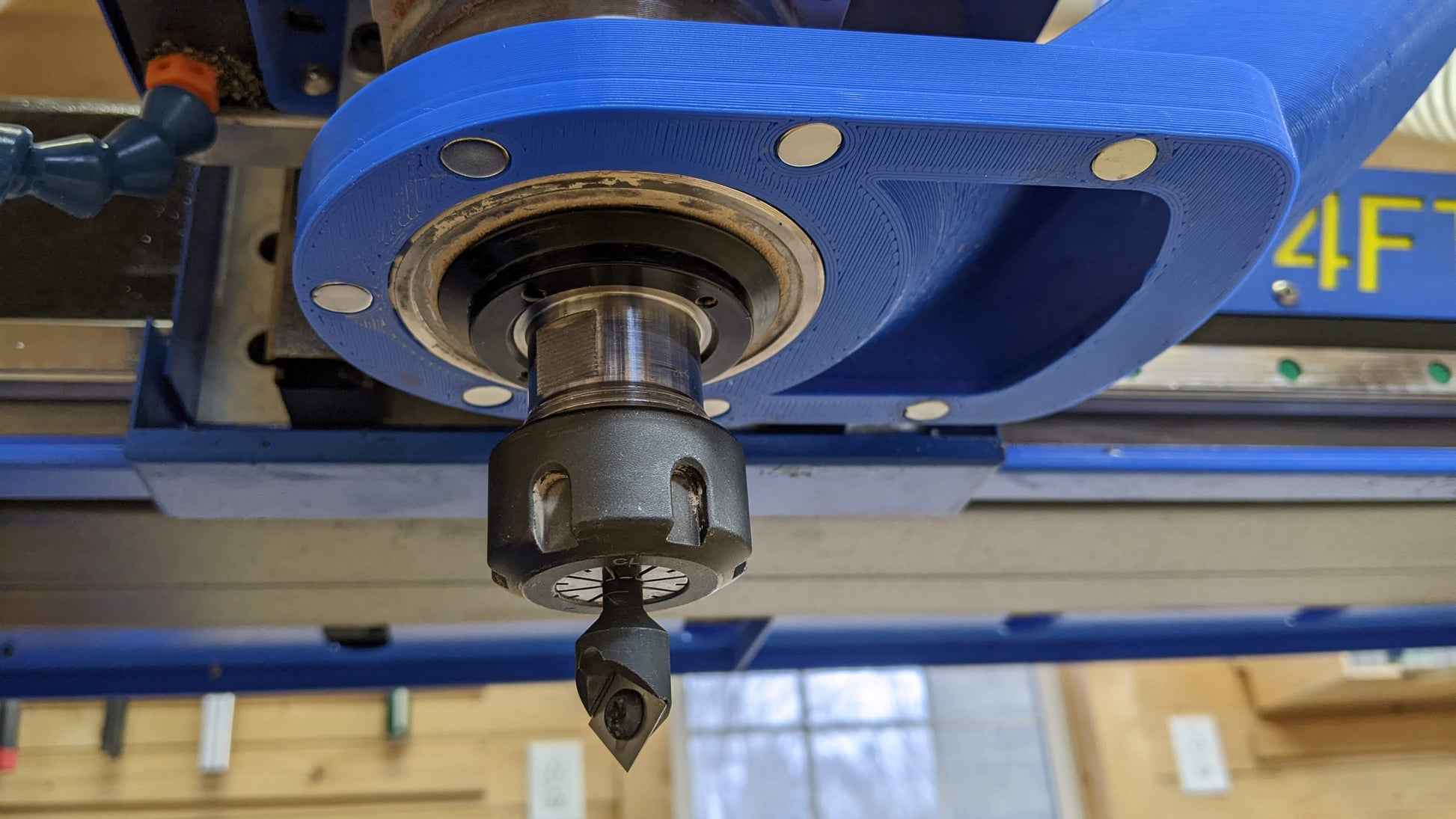

The boot clamps directly to the spindle body, so it moves with your Z-axis and keeps the brush right where the chips are. The magnetic quick-release brush skirt pops off in seconds for bit changes, tool setting, and workpiece inspection — no tools, no fuss.
Features:
- Purpose-built for Phantom SCV44, Cosmic & Shadow CNC machines
- Clamps 85mm spindle bodies including the HQD GDF60-18Z-6.0
- Brush included — magnetic quick-release skirt for fast bit changes
- Replaceable brush — swap the skirt, keep the boot
- 4" dust hose connection for full-flow chip extraction
- Printed in Phantom-matching blue
Frequently asked questions
Is the brush included with the dust boot?
Yes. Every P2P dust boot ships with a 3" USA-made nylon brush skirt already installed on it — you do not buy the brush separately. The brushes listed in our store are optional spares and replacements for when yours wears down or gets trimmed too short.
What's the difference between a full brush and a split brush?
A full brush is one continuous ring of bristles — the best seal and the strongest suction, ideal for long runs on a single bit. A split brush is that same ring divided into two halves, so you can part it and reach the bit without pulling the skirt off the boot — handy if you change tools constantly. This boot ships with the full brush; a split skirt drops onto the same magnets any time.
Why is the brush shown off the boot in some photos?

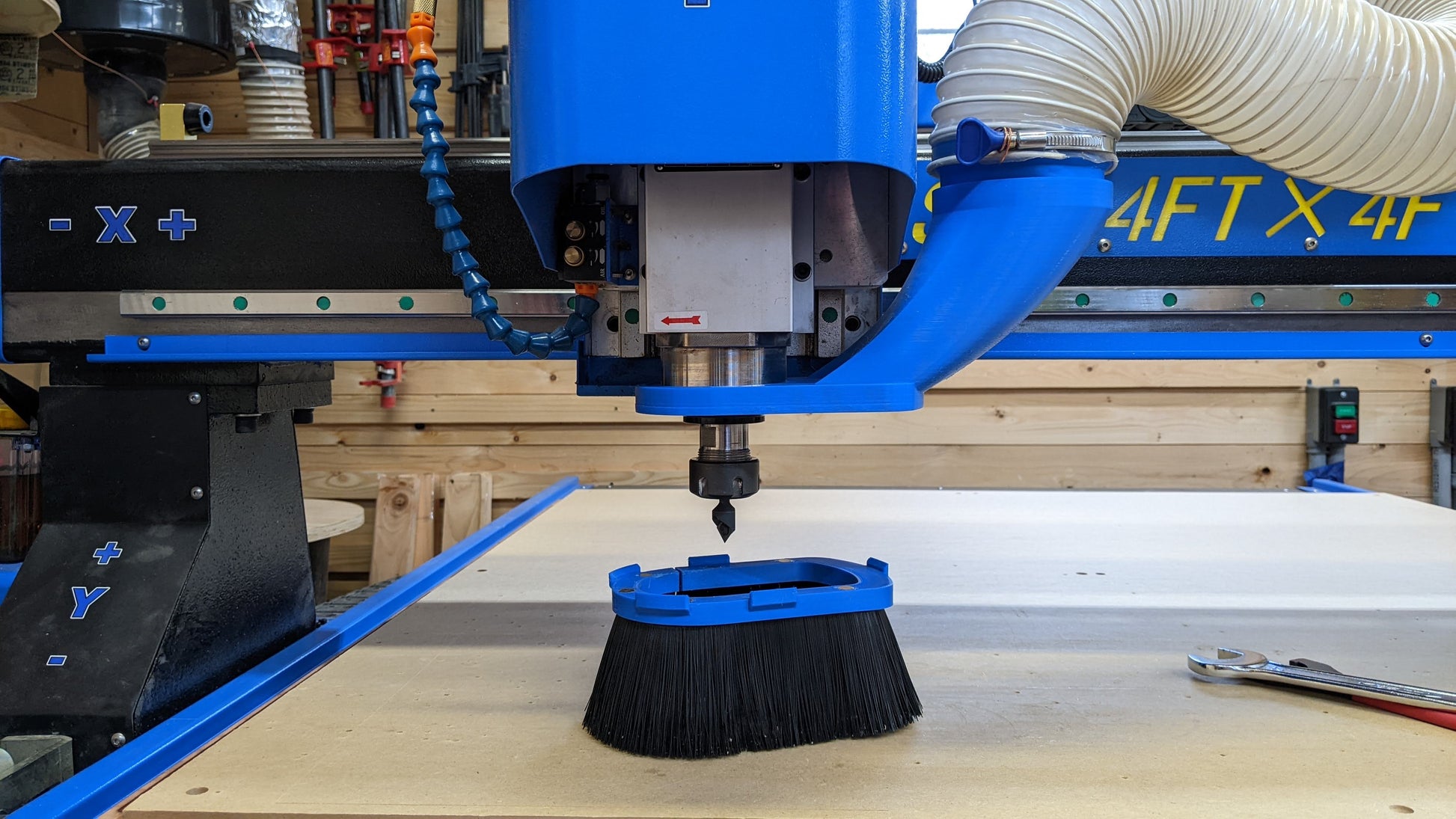

That's the magnetic quick-release in action — the skirt lifts straight off so you can see the bit for a tool change or to set Z-zero, then snaps back on. It ships attached to the boot.
